2026 Best Guide to 500kg Hydraulic Pivot Hinges: SH PIVOT, JNF Hydraulic or FritsJurgens
Large pivot doors have become a popular choice for modern homes, hotels, offices, restaurants, and commercial buildings. As these doors have become wider and heavier, standard hinges are no longer enough for many installations.
This is where a 500kg hydraulic pivot hinge comes in.
A heavy-duty hydraulic pivot system has to do more than carry the weight of the door. It also needs to control how the door opens, slows down, and closes. This becomes even more important with oversized timber or metal doors, where a poorly matched pivot can make the door difficult to operate.
Three systems worth considering in this category are the SH PIVOT D-6006, JNF Hydraulic Pivot 500 Plus, and FritsJurgens System M+. All three are designed for heavy pivot doors, but they take slightly different approaches.
Why the 500kg Hydraulic Pivot Market Is Growing
The demand for heavy-duty pivot hardware is closely tied to the growing use of oversized doors.
Architects often want large door leaves with clean lines and minimal visible hardware. A pivot system makes this possible because much of the mechanism can sit inside the door rather than being mounted along the frame.
At the same time, large doors create a practical problem. A 400kg or 500kg door cannot be treated like a normal interior door. The hardware needs enough strength to support the load while still allowing controlled movement.
Hydraulic systems help solve this problem. They regulate the door’s movement instead of simply acting as a basic hinge.
For installers and architects, the choice therefore comes down to more than the maximum weight rating. Door thickness, width, pivot position, adjustment options, closing control, installation method, and the type of project all matter.

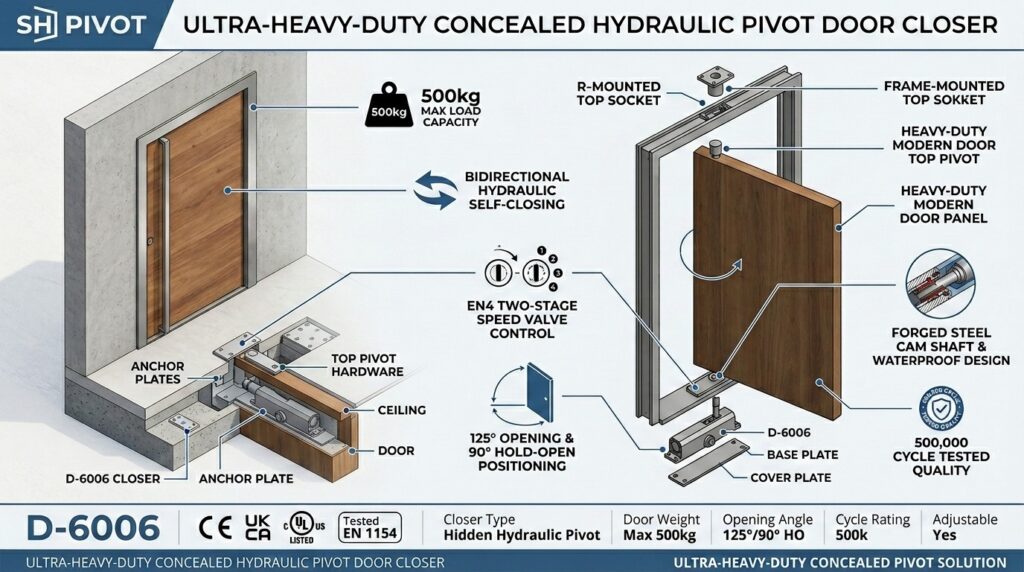

SH PIVOT D-6006 500kg Hydraulic Pivot

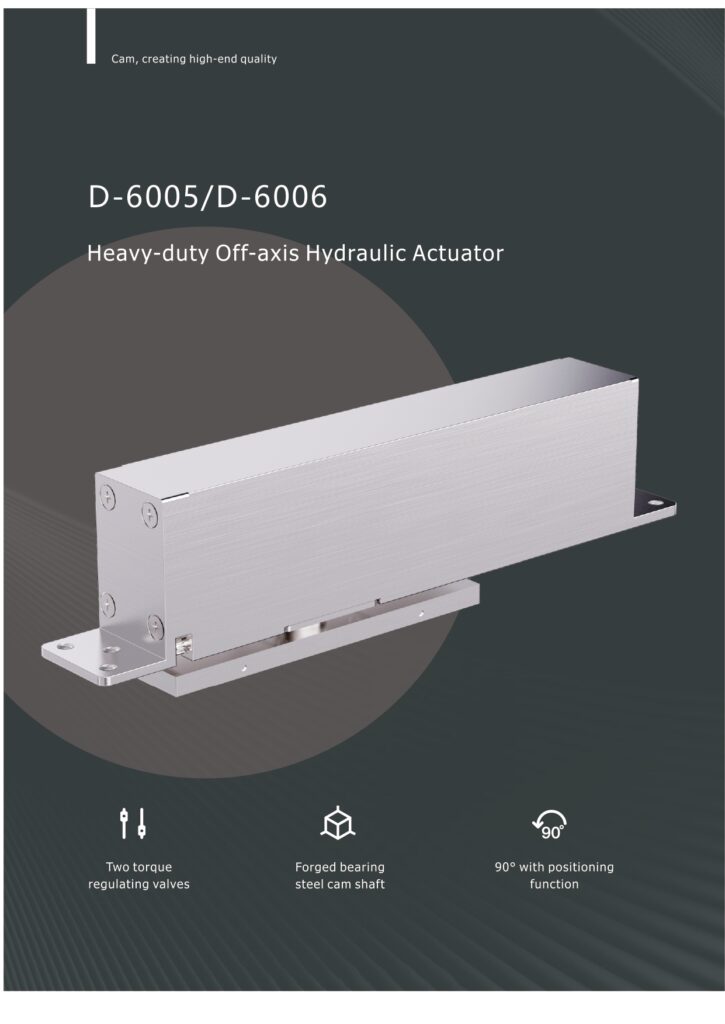

The SH PIVOT D-6006 is built specifically for heavy off-axis pivot doors. Its rated capacity is 500kg, making it suitable for some of the largest residential and commercial door applications. The manufacturer’s technical material specifies a minimum door thickness of 60mm and a maximum width of 1800mm from the axis core to the edge.
The D-6006 uses high-strength 45# steel and a solid cam shaft. It also has a sealed design intended to resist water, rust, and temperature changes. These details matter when the hardware is expected to work reliably under a substantial load.
Another useful feature is the adjustable base. Instead of relying entirely on precise initial positioning, the base allows adjustment after installation. The system also uses two-stage speed regulation, giving installers control over the closing movement.
The D-6006 supports bidirectional opening and closing. It has a 90° positioning configuration and a maximum opening angle of 125°. Its standard closing time is around 6 to 10 seconds, although this can be adjusted for the installation.
For projects where strength and a heavy-duty construction are the main priorities, the D-6006 is a serious option.
JNF Hydraulic Pivot 500 Plus
The JNF IN.05.216.HO is another 500kg hydraulic pivot system aimed at oversized doors.
JNF lists the system for doors up to 500kg, with a minimum door thickness of 50mm and a maximum door width of 3000mm. It can be used with both timber and metallic doors.
The system uses hydraulic CAM technology. JNF says the mechanism provides control over both opening and closing, with independent adjustment for the hydraulic action. It also includes backcheck to help control the door when it is opened quickly.
The Hydraulic Pivot 500 Plus also offers 90° stop positioning and bidirectional operation. Another interesting feature is the option for cable routing through the top pivot, which can be useful when the door needs electrical access for security hardware or other equipment.
Its 3000mm maximum width gives JNF an advantage for projects where the door is particularly wide.
FritsJurgens System M+
The FritsJurgens System M+ takes a slightly different approach. Rather than being presented simply as a 500kg hinge, it is a complete pivot system designed to control different parts of the door’s movement.
The System M+ covers doors from 20kg up to 500kg. For its 350–500kg class, FritsJurgens specifies a minimum door thickness of 50mm. The system can work with single-acting and double-acting doors.
Movement control is one of its main selling points. The System M+ includes Damper Control, 30° Speed Control, and Latch Control. It also uses hydraulic backcheck to slow the door as it approaches the opening limit.
The system can hold the door at 0°, 90°, and -90°. It is also self-closing, bringing the door back towards the closed position after opening.
For heavy doors between 350kg and 500kg, FritsJurgens lists a maximum door width of 5000mm. That makes it particularly interesting for very wide architectural doors.
SH PIVOT D-6006 vs JNF Hydraulic Pivot 500 Plus
Both the SH PIVOT D-6006 and JNF Hydraulic Pivot 500 Plus are designed for 500kg doors, but their specifications show some useful differences.
The D-6006 has a maximum width of 1800mm from the axis core to the edge and requires a door thickness of at least 60mm. The minimum thickness for a JNF door is 50mm and the maximum width is 3000mm.
SH PIVOT system is strongly focused around heavy duty construction. It features a 45 steel body, a solid cam shaft, a sealed design, and an adjustable base, all designed to meet the challenges of harsh environments.
On the other hand, JNF focuses on its hydraulic CAM system, backcheck, adjustment options and electric cable routing.
So it is really a choice based upon the door. If you have a heavy door, and you want something built solidly, you should consider the D-6006. If you are looking for a wider door or features that are more integrated into the installation, JNF may be the better option.
SH PIVOT D-6006 vs FritsJurgens System M+
The comparison is slightly different with the System M+.
Both systems can handle doors up to 500kg, but FritsJurgens offers a wider range of door sizes within its system. It can be used on widths up to 5000mm and thicknesses up to 50mm for its 350-500kg class.
More specifically, the D-6006 is designed as a heavy duty off axis actuator. So its specifications require that it be at least 60mm thick and up to 1800mm from the axis core to the edge of the door.
System M+ offers a wider range of motion-control. There are three controls, Damper Control, 30° Speed Control and Latch Control, which allow the installer to fine-tune various phases of the door’s travel.
However, the D-6006 sticks to the heavy duty performance. It can run at two speeds which can be regulated as desired for ease of installation and operation.
Advantages and Disadvantages of the Three 500kg Systems
SH PIVOT D-6006
Advantages
- 500kg load capacity
- High-strength 45# steel construction
- Solid cam shaft
- Sealed and corrosion-resistant design
- Adjustable base
- Two-stage closing speed adjustment
- Suitable for thick wooden and metal doors
Disadvantages
- Requires a minimum 60mm door thickness
- Its listed width specification is narrower than the JNF and FritsJurgens systems
- The system is primarily suited to heavy-duty applications rather than a broad range of lighter doors
JNF Hydraulic Pivot 500 Plus
Advantages
- Supports doors up to 500kg
- Suitable for doors from 50mm thick
- Maximum listed width of 3000mm
- Hydraulic CAM technology
- Backcheck and soft-close functions
- Bidirectional operation
- Cable routing can be integrated through the top pivot
Disadvantages
- Its wider range of adjustment and features can make specification more involved
- The correct base and upper pivot configuration needs to be selected for the installation
FritsJurgens System M+
Advantages
- Supports doors up to 500kg
- Suitable for very wide pivot doors
- Multiple movement-control functions
- Self-closing operation
- Hold positions at 0°, 90°, and -90°
- Available for single- and double-acting doors
Disadvantages
- The system has several components that need to be selected correctly
- It can be more than what a straightforward heavy-duty door installation requires
- Specification needs to account for door weight, width, pivot position, and system class
Which 500kg Hydraulic Pivot Should You Choose?
There is no single winner for every 500kg pivot door.
The SH PIVOT D-6006 is a good value for a task that requires a sturdy, powerful off-axis hydraulic actuator built from steel and easy to adjust.
The JNF Hydraulic Pivot 500 Plus is a consideration if you need a wider door, CAM-based hydraulic control, or integrated electrical routing.
When it comes to movement control and extremely large architectural doors, the FritsJurgens System M+ is the standout. With a capacity of 500kg and a wide range of adjustments, it is suitable for demanding design projects.
Choosing a pivot just because it is listed as “500kg” on the specification sheet isn’t the most important factor. The final choice is influenced by the width and thickness of the door, the position of the pivots, the materials used, and the intended use of the door.
The D-6006, Hydraulic Pivot 500 Plus and System M+ all provide a viable option for 2026 projects. The right one is the system that matches the actual door rather than just its maximum weight rating.
