DZ-2036 Hydraulic Pivot System by SH PIVOT
This time ,we are going to explore how Hydraulic pi ot hinge work? Now let’s take DZ-2036 as an example .When it comes to modern pivot systems, what separates a good product from a dependable one is precision. The DZ-2036 hydraulic pivot system from SH PIVOT is clearly designed with that mindset.
Every component, adjustment point, and installation step reflects a focus on control, durability, and real-world usability rather than marketing claims.
Rather than relying on excessive complexity, this model focuses on refined functionality. Every component serves a clear purpose, making it suitable for demanding commercial and architectural applications.
Product Structure and Component Design

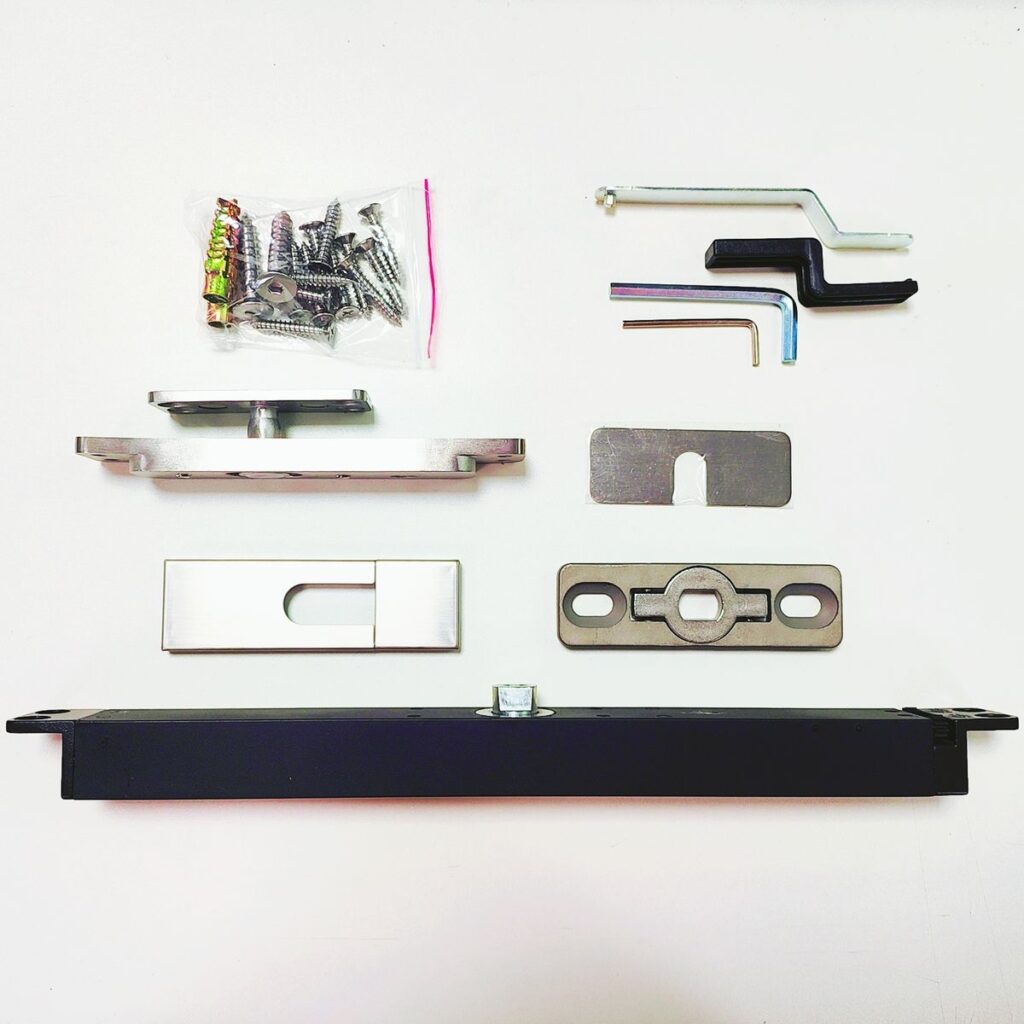

The DZ-2036 consists of three major parts including the top shaft, the main body, and the base. These parts combine to form a stable pivot mechanism that allows the door to move smoothly through a high degree of motion.
The upper shaft is designed with adjustable positioning, which offers an accurate positioning during installation. Such flexibility is necessary in dealing with heavy or frameless doors, where any slight inaccuracy can influence performance. The hydraulic mechanism and regulating valves are located in the main body and the base provides the structural support and corrects the alignment through the adjustable design.
Every component is designed to be a complete system, so they should all perform well when fitted accordingly.
Hydraulic Range and Door Control
The hydraulic design of the DZ-2036 is made to control door movement in distinctly defined steps. Closing the door is broken into a series of angular ranges to strike a balance between control and consistency.

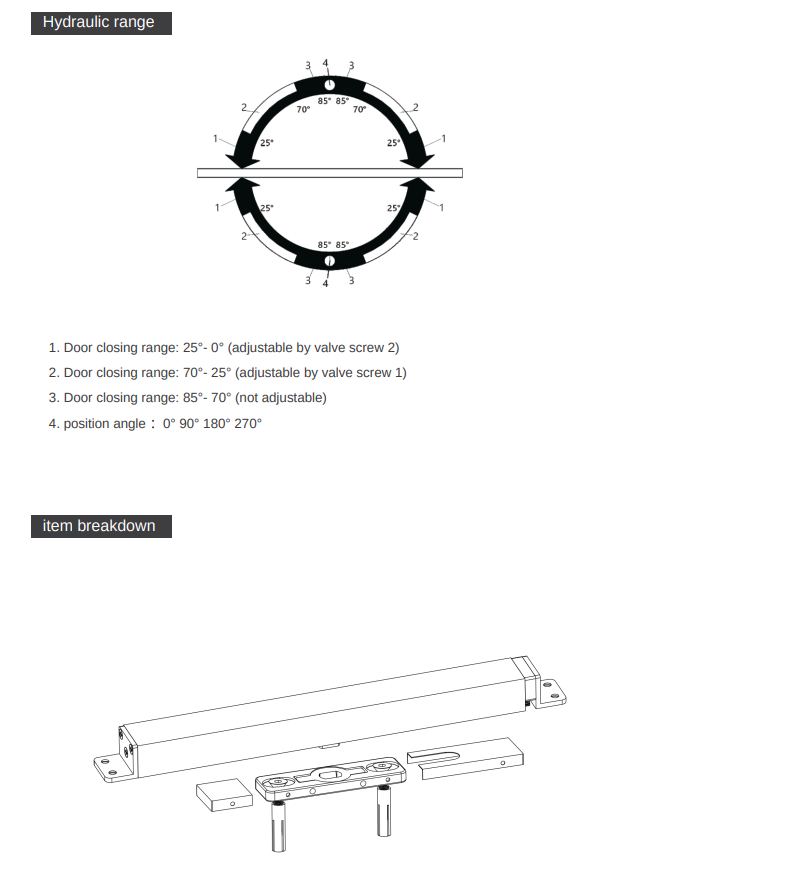

The first regulating valve controls the closing speed between 70 degrees and 25 degrees. The range regulates the primary closing movement of the door and leaves the installers to adjust the speed to suit the door weight and usage needs.
The second regulating valve is used to adjust the closing speed between 25 degrees and 0 degrees. This last step provides a controlled closing action which is smooth and also gives enough locking force at the end position.
The range of 85 degrees to 70 degrees is not adjustable by design. This fixed hydraulic zone ensures stability and predictable behavior during wider opening movements, preventing excessive adjustment that could compromise performance.
The system accommodates various position angles including 0, 90, 180 and 270 degrees, meaning it can be used in a wide variety of door designs.
Dimensional Specifications and Product Size
The DZ-2036 is manufactured with precise dimensional control to ensure compatibility and accuracy during installation. The main body length measures 330 mm, with an overall external length of 344 mm. The internal hydraulic section has a size of 304 mm, which makes it compact in integration without compromising on performance.
The height and depth of the product are set in such a way that they fit neatly in the door assembly without excessive bulk. These dimensions have enabled the system to serve both light form architectural works and heavier commercial applications.
All measurements are standardized to support repeatable installation and reliable positioning across multiple projects.
Drilling Requirements and Installation Accuracy
Accurate drilling is essential for pivot system performance, and the DZ-2036 is designed with clearly defined drilling dimensions. The drilling size ensures that the system sits flush and remains stable once installed.
The base mounting holes are spaced with a center distance of 78 mm, giving an equal distribution of loads. The base holes are engineered to allow stable fastening, which minimizes chances of movement or loosening with time.
These drilling requirements enable installers to obtain an accurate alignment and reduce the installation errors.
Base Design and Two-Dimensional Adjustment
The two-dimensional adjustable base is one of the major strengths of the DZ-2036. This feature enables vertical correction post-installation, and it can then be possible to fine tune the door alignment without having to take the system out or alter the mounting surface.
This adaptation feature is particularly welcome in practical installations where floor levels or door panels cannot be aligned accurately. The system ensures that the door and the rest of the structure are not subjected to uneven stress by ensuring that the door can be corrected.
Installation and Adjustment Process
Installation commences by identifying the right site and fixing the base well. When the base is in place, the main body and upper seat are attached to the door. The upper shaft is then inserted into the upper seat, and the door opened to position the shaft to the base before permanent fixing.
Upon installation, the base adjustment screws are used to correct the vertical alignment. The last stage is to adjust the regulating valves on the main body to the desired closing speed and locking force. This gradual process of adjustment guarantees that it operates smoothly and that the closing performance is consistent.
Built for Reliability and Long-Term Use
The DZ-2036 is intended to be used in projects where reliability is essential. Its regulated hydraulic operation, accurate dimension and adaptable capabilities make it a dependable solution to both installers, as well as end users.
The balance among flexibility and mechanical stability of the system is ensured by integrating adjustable factors with fixed hydraulic zones. This solution minimizes wear, noise, and provides a consistent door behavior as the years go by.
Final though
For projects that demand reliability, controlled motion, and clean installation, the SH PIVOT DZ-2036 is a practical and well-engineered solution.
It reflects a deep understanding of how pivot systems are actually used, not just how they look on paper.
