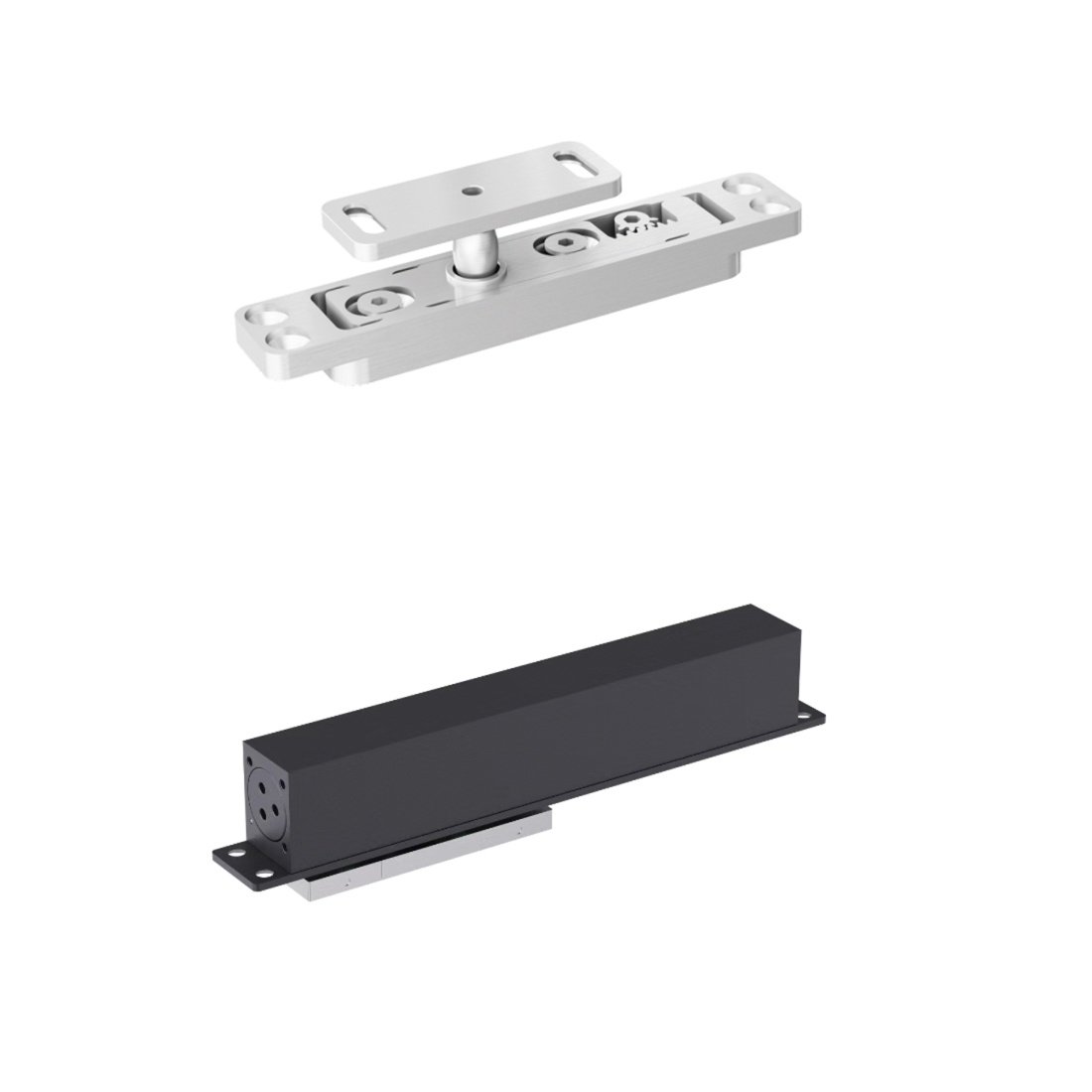

D-1032

Framed door eccentric hydraulic actuator

D-1032 is best solution for 60KGS/100KGS hydraulic pivot concealed closer.It has legncee design with asthitic and fluidity in its movements.This hydraulic pivot is easy to install ,silent close movements;it meets 60/100KG hydraulic pivot door .It take damper and latching closing speed option in 2 stage speed closing.

Model: D-1032

1、304ss appearance

2 Steel body

3 Two-dimensional adjustable base

4Forged bearing steel camshaft

5 Two torque regulating valves (easy to open, smooth to close, stable torque)

6 90 degrees with positioning function

7 Small angle with locking force

8 Applicable to off-axis wooden doors or metal doors with a thickness of more than 40mm
