D-3001

Ultra-Heavy-Duty Off-axis/Middle-axis Heavy duty piot hinges

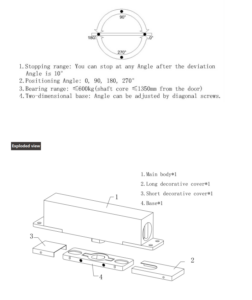

D-3001 is Ultra-Heavy-Duty Off-axis/Middle-axis Spring Actuator who can support 400/600KGS loading without hydrualic function. This is super heavy duty pivot hinges.It is 360 open; you can stop at any angle.The position is angle is 0 90 180 270 .The bearing range is<600kgs; It has 2-dimensional base .It also take high quality raw material45#steel.

Model: D-3001

Features:

1 SS304 finish,steel main body

2 Two dimensional adjustment base

3 Forged bearing steel camshaft

4 90 degree with positionin function

5 Small angle with locking force

6 exquisite appearance

7 Suitable for wooden door or metal door with off-axis/middle-axis above 60mm door thickness
