The advantage of Hydraulic pivot: Technique Advantages
Technical Core: Precision Hydraulics & Ultra-Thin Structure
The integration of precision mechanical transmission with variable-section hydraulic damping delivers smooth, consistent, and long-lasting door-closing operation.

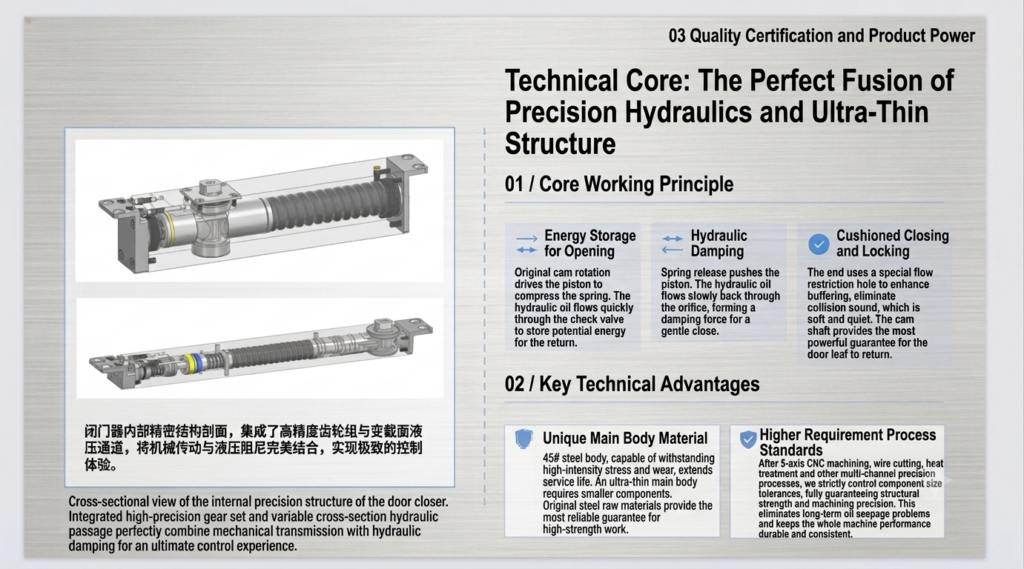

SH Hydraulic pivt Working Principles
-
Energy Storage During Opening An innovative cam-shaft mechanism directly compresses the interior spring during door opening. Hydraulic oil flows rapidly through a one-way check valve, efficiently storing potential energy required for the automatic return cycle.
-
Controlled Hydraulic Damping Upon release, the spring pushes the piston to close the door. The hydraulic oil is forced through a calibrated throttling orifice, generating controlled resistance that ensures a steady, uniform closing speed without sudden slamming.
-
Cushioned Soft-Closing & Latching In the final phase of motion, specialized throttling ports provide maximum hydraulic buffering. This action completely eliminates impact noise for a quiet, gentle closure while ensuring sufficient force for complete latching.
SH Hydraulic Technical & Engineering Advantages
1. High Power Density in an Ultra-Thin Profile
Hydraulic systems generate immense resistance and holding force within a remarkably compact envelope. By housing high-precision gear sets and variable cross-section fluid channels inside an ultra-slim body, the mechanism delivers full-sized door control without requiring bulky hardware.
2. High-Strength Material Construction
To support high pressure in a slim form factor, the main housing is constructed from heavy-duty #45 steel. This high-grade material easily withstands extreme operational stress and friction, preventing deformation over extended heavy usage.
3. Precision Manufacturing & Leak Prevention
Advanced multi-axis CNC machining, wire cutting, and thermal heat treatments guarantee strict dimensional tolerances. This ultra-precise engineering ensures leak-free hydraulic performance and reliable, long-term durability under continuous use.

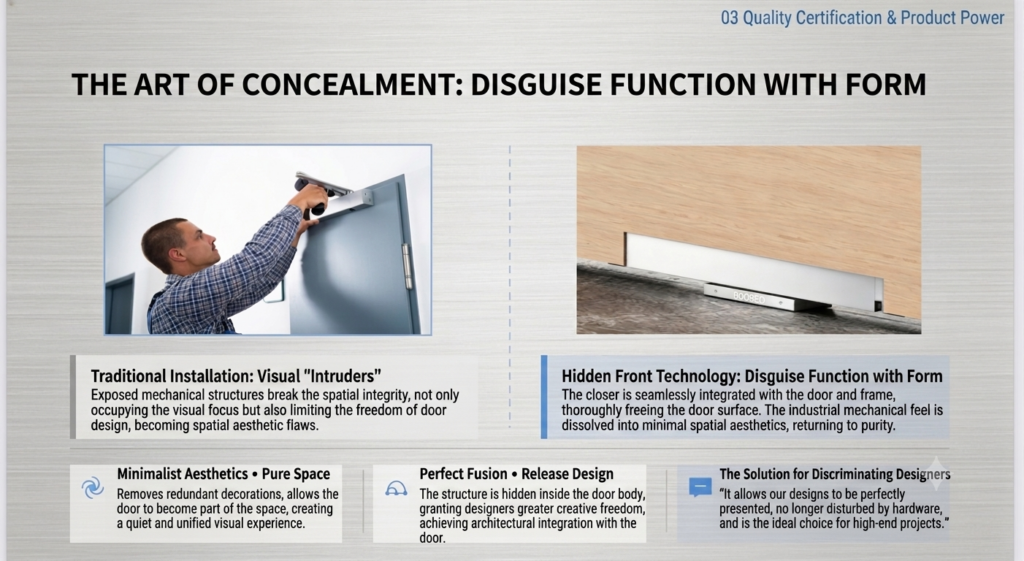

The advantage of Hydraulic pivot: Designa and install Advantages
Let’s also analysis the design and installing advantages:
Concealed Minimalist Design: Unlike bulky traditional door closers that disrupt visual aesthetics, the system seamlessly integrates inside the door leaf and frame, eliminating exposed hardware.
Pure Architectural Integration: Removes unnecessary decorations to help the door blend naturally with the surrounding space, creating a quiet, unified visual experience.
Enhanced Creative Freedom: Hiding the mechanical components within the door gives architects and designers greater freedom without compromising the door’s surface aesthetics.
Discreet Functionality: Dissolves the raw industrial mechanical feel into clean, modern spatial aesthetics, making it the preferred choice for high-end projects.
