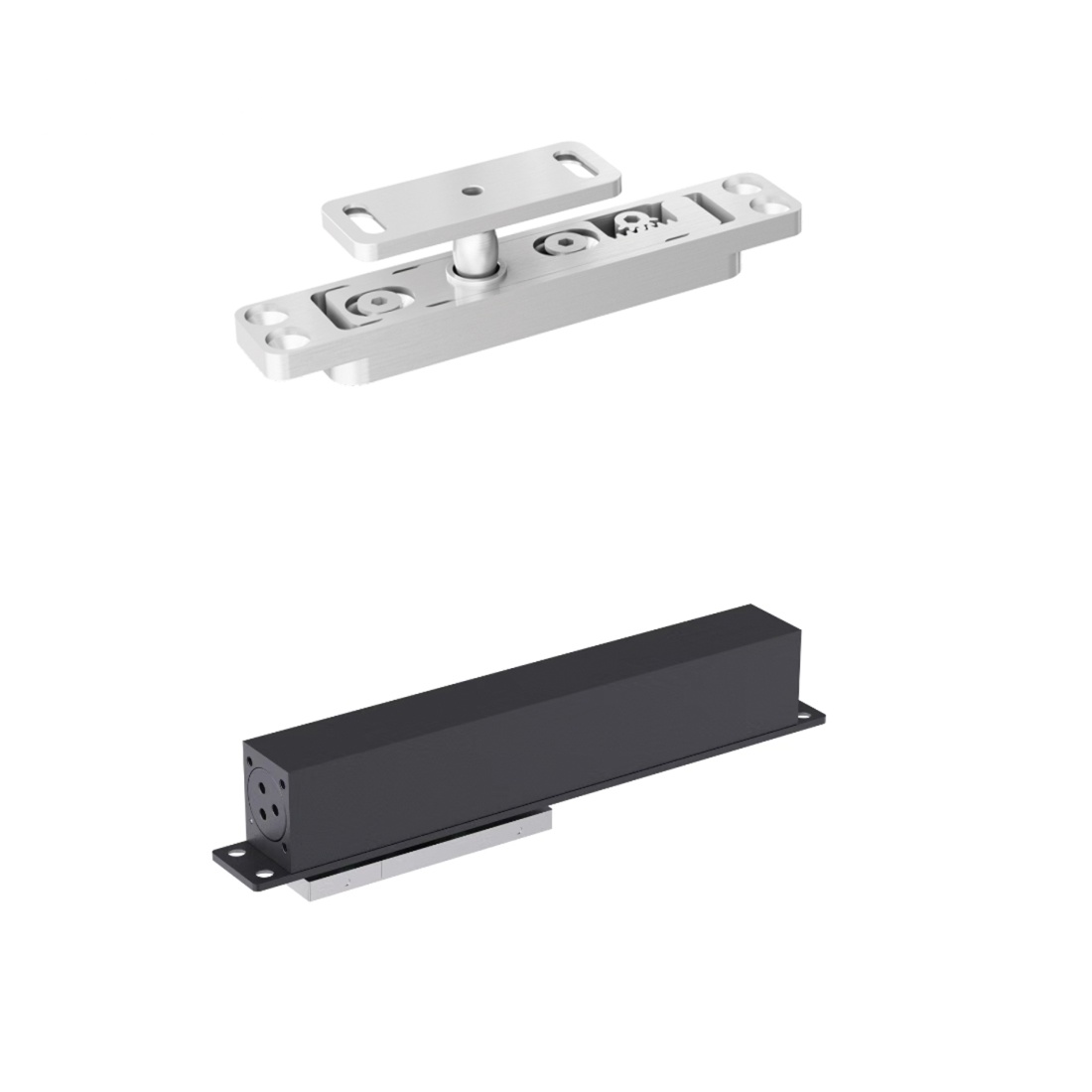

D-1033

Wooden door side shaft hydraulic pivoy door concealed closer

The hydraulic system allows control of speed and the absorption of abrupt movements, ensuring smooth, safe, and adjustable operation that not only enhances the user experience but also extends the lifespan of both the door and the system in 60KGS/100KGS wooden door application.We call it Cam technology-it take damper and latch closed speed technology.
Engineered with advanced features such as **soft close** and **hold open**, the **SH pivot** ensures effortless operation and enhanced convenience. Its **cam action mechanism** guarantees precise movement, makes it a perfect choice for accessibility-focused designs)

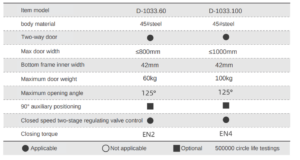

Model: D-1033

1、 Product Introduction

2Steel body

3 Two-dimensional adjustable base

4Forged bearing steel camshaft

5Two torque regulating valves (easy to open, smooth to close, stable torque)

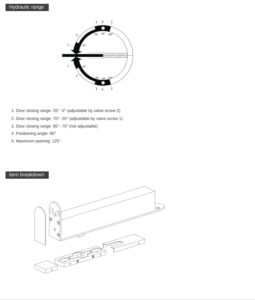

6、 90 degrees with positioning function

7 Small angle with locking force

8 Applicable to off-axis wooden doors or metal doors with a thickness of more than 40mm
