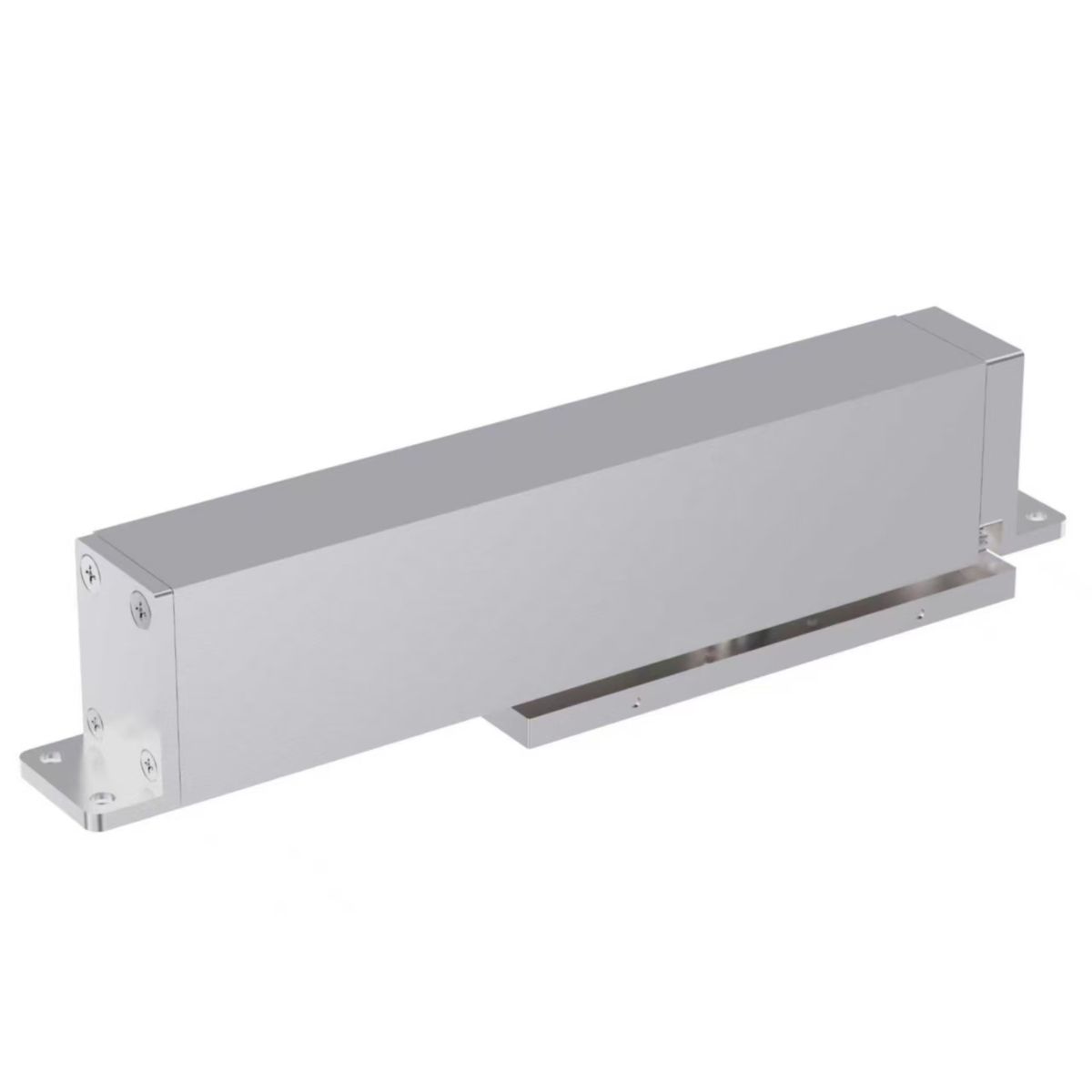

D-1067

Ultra-heavy-duty framed side-axis door hydraulic actuator Hydrualic pivot hinges

D-1067 is Ultra-Heavy-Duty Side-axis Spring Actuator Hydrualic pivot hinges,suitable for 200KGS heavty duty hydraulic pivot door .D-1067 is with hydrualic pivot who has self-closed function with backcheck function.It is a best solution for Hydraulic Pivot 200 Plus. D-1067 has 2 loading option :200kgs&300kgs. Its mamimum opening anle is 125 degree. Self-closing range is 0-85degree. It has 2 stage close speed.

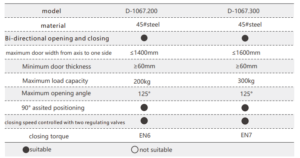

Model: D-1067

Features:

1 SS304 finish,steel main body

2 Two dimensional adjustment base

3 Forged bearing steel camshaft

4 Two torque regulating valves(opening lighting,closing smoothly,stable, torque)

5 90 degree with positionin function

6 Small angle with locking force

6 exquisite appearance

7 Suitable for wooden door or metal door with off-axis/middle-axis above 60mm door thickness

8 Maximu opening angle is 125degree
