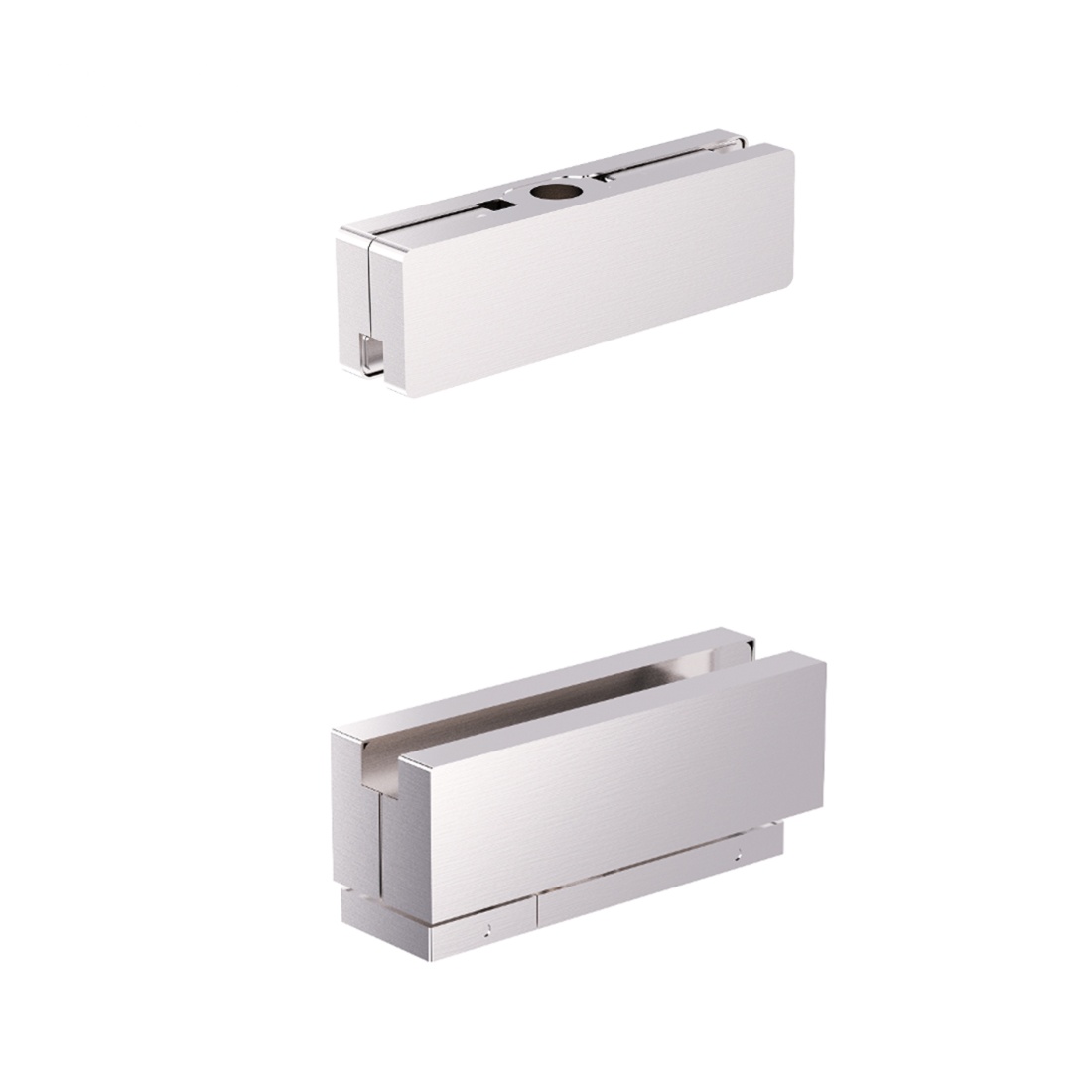

Hydrualic pivot Frameless glass side pivot door spring

80/120KGS glass pivot door hinges.It is suitable for 80-120KGS glass pivot door hinges.Max open angle 165 degree .It is without hydrauli 2 stage soft close function.

Model: D-3016

1、 stainless steel

2  Two-dimensional adjustable base

3、 Ultra-thin design

4、 Double spring cam shaft

5、 90 degrees with positioning function

6  Locking force at small angles

7、Exquisite appearance

8  Suitable for 8-12mm frameless central axis or offset glass doors. Frameless glass central axis door springer

• Item body size: 36*36*126(mm)
• Max hinge loading 120      (kgs)
