Ultra-Heavy-Duty Side-axis Spring Actuator Hydrualic pivot hinges

D-1068  is Ultra-Heavy-Duty Side-axis Spring Actuator Hydrualic pivot hinges,suitable for 350KGS heavty duty door .D-1068  is with hydrualic pivot who has self-closed function with backcheck function.It is best solution for Hydraulic Poivot 350 plus.This hydraulic pivot has big advantage to Floor Spring; it is in slow soft-close with 2 stage close speed in a very safety way.

Model:  D-1068

Features:

1 SS304 finish,steel main body

2 Two dimensional adjustment base

3 Forged bearing steel camshaft

4 Two torque regulating valves(opening lighting,closing smoothly,stable, torque)

5  90 degree with positionin function

6  Small angle with locking force

6  exquisite appearance

7 Suitable for wooden door or metal door with off-axis/middle-axis above 60mm door thickness

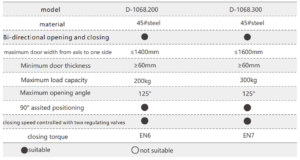

• Item body size: 60*40*270(mm)
• Max hinge loading 300    (kgs)
