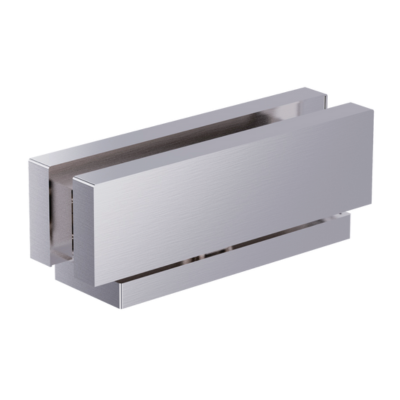

Glass door hydraulic pivot hinge

Model: D-3015

1、 304 stainless steel

2 Two-dimensional adjustable base

3、 Ultra-thin design

4、 Double spring cam shaft

5、 90 degrees with positioning function

6  Locking force at small angles

7、 Exquisite appearance

8  Suitable for 8-12mm frameless central axis or offset glass doors. Frameless glass central axis door springer

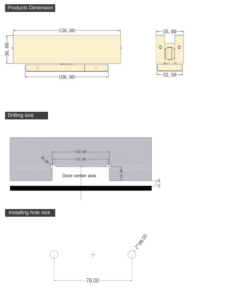

• Item body size: 36*36*138(mm)
• Max hinge loading 150      (kgs)

9 Opening and closing stroke

1. Stop range: can stop at any angle after 10° off-center
2. Positioning angle: 0, 90, 180, 270°
3. Load-bearing range: ≤150kg (axis core ≤1000mm from door edge)
4. Two-dimensional base: diagonal and left and right screws can be adjusted 5. Maximum opening: 360°
