Ultra-Heavy-Duty Off-axis/Middle-axis Heavy Duty Hinges

D-3002  is Ultra-Heavy-Duty Off-axis/Middle-axis Spring Actuator who can support 450KGS loading without hydrualic function. It is suitable for 450KGS wooden door/aluminum door/glass door.It is 2D adjusted , 90degree position,and with small locking force.

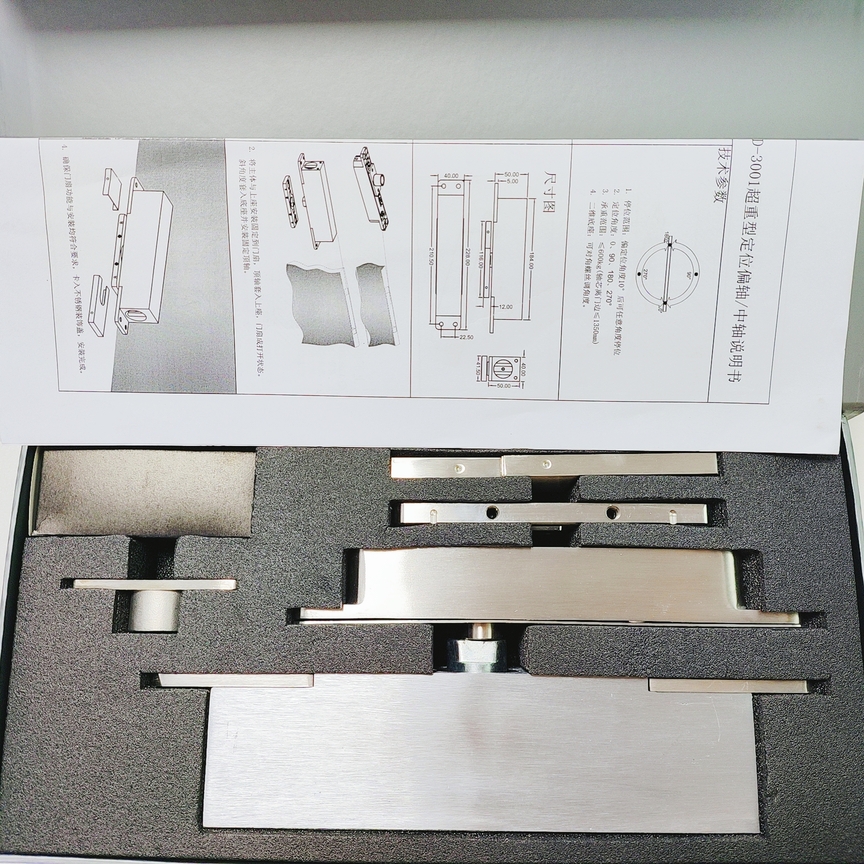

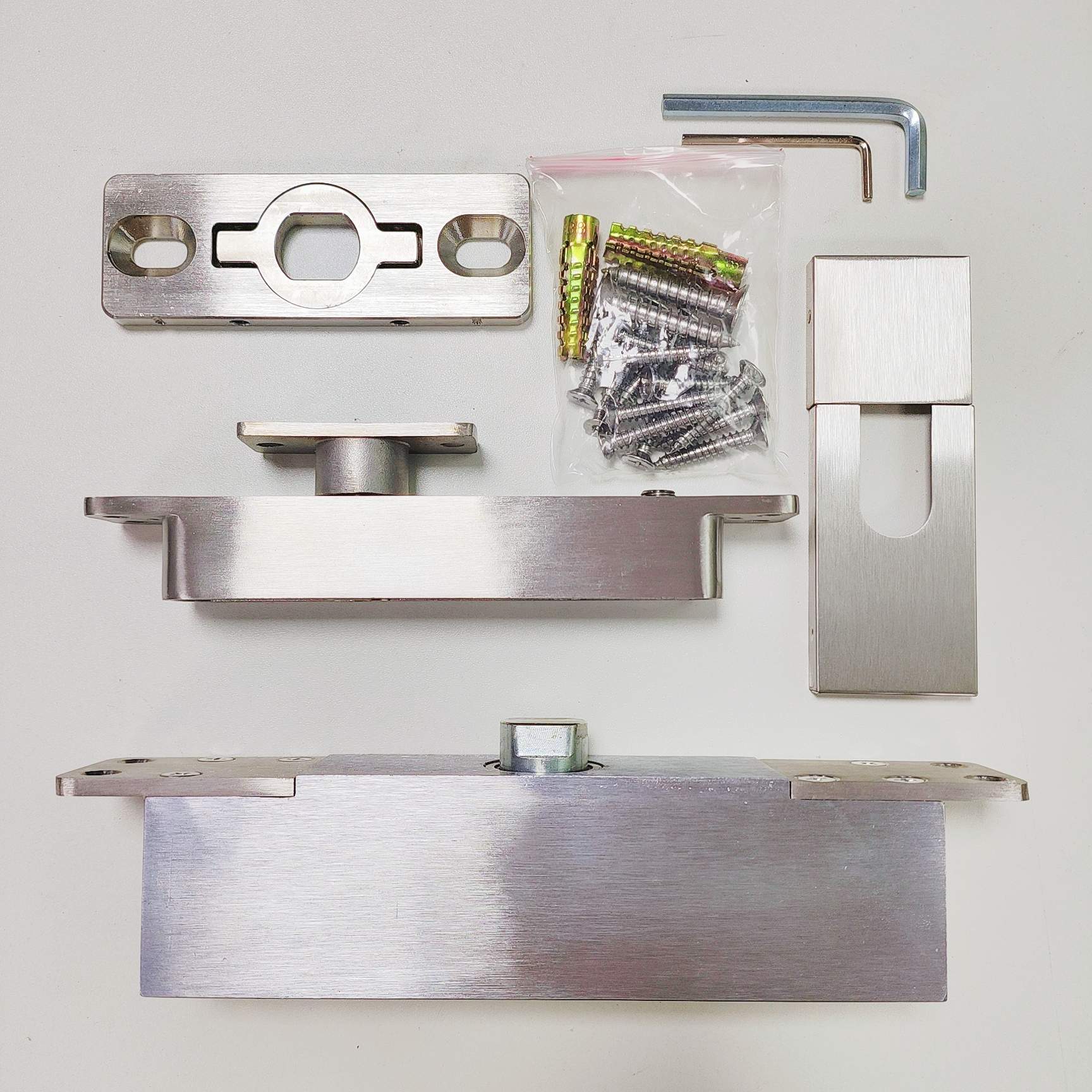

Model:  D-3002

Features:

1 SS304 finish,steel main body

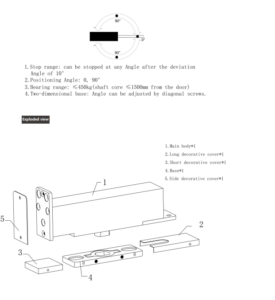

2 Two dimensional adjustment base

3 Forged bearing steel camshaft

4 90 degree with positionin function

5  Small angle with locking force

6  exquisite appearance

7 Suitable for wooden door or metal door with off-axis/middle-axis above 60mm door thickness

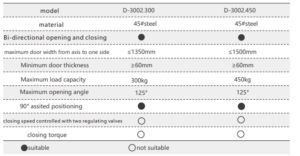

• Item body size: 40.6*72.3*189.8(mm)
• Max hinge loading 450    (kgs)
