Hydraulic Pivot Hinge  for 100KGS or 150KGS heavy glass  door

D-3012 is  a flexible design hydraulic pivot:It is installed in middel pivot door like aluminum door/glass door:

it is 2Djusted which take advanced CAM technology: It can be suitabel for 100KGS or 150KGS heavy duty door with frame.

It could be positioned on 0,90,180,270 degree: It has backcheck function (2 speed control)

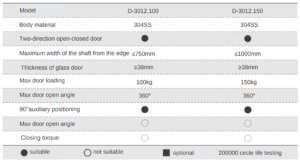

Model:  D-3012

Features:

1 Material SS304

2 Two dimensional adjustment base

3 18mm ultra-thin desing

4 Double spring cam shaft

5 90 degree with positioning fuction

6  small angle with locking force

7 Exquiste appearance

8  Suitable for doors with a thickness of 38mk or more and with a central axis or an offset axis

• Item body size: 18*28*106(mm)
• Max hinge loading 150      (kgs)
