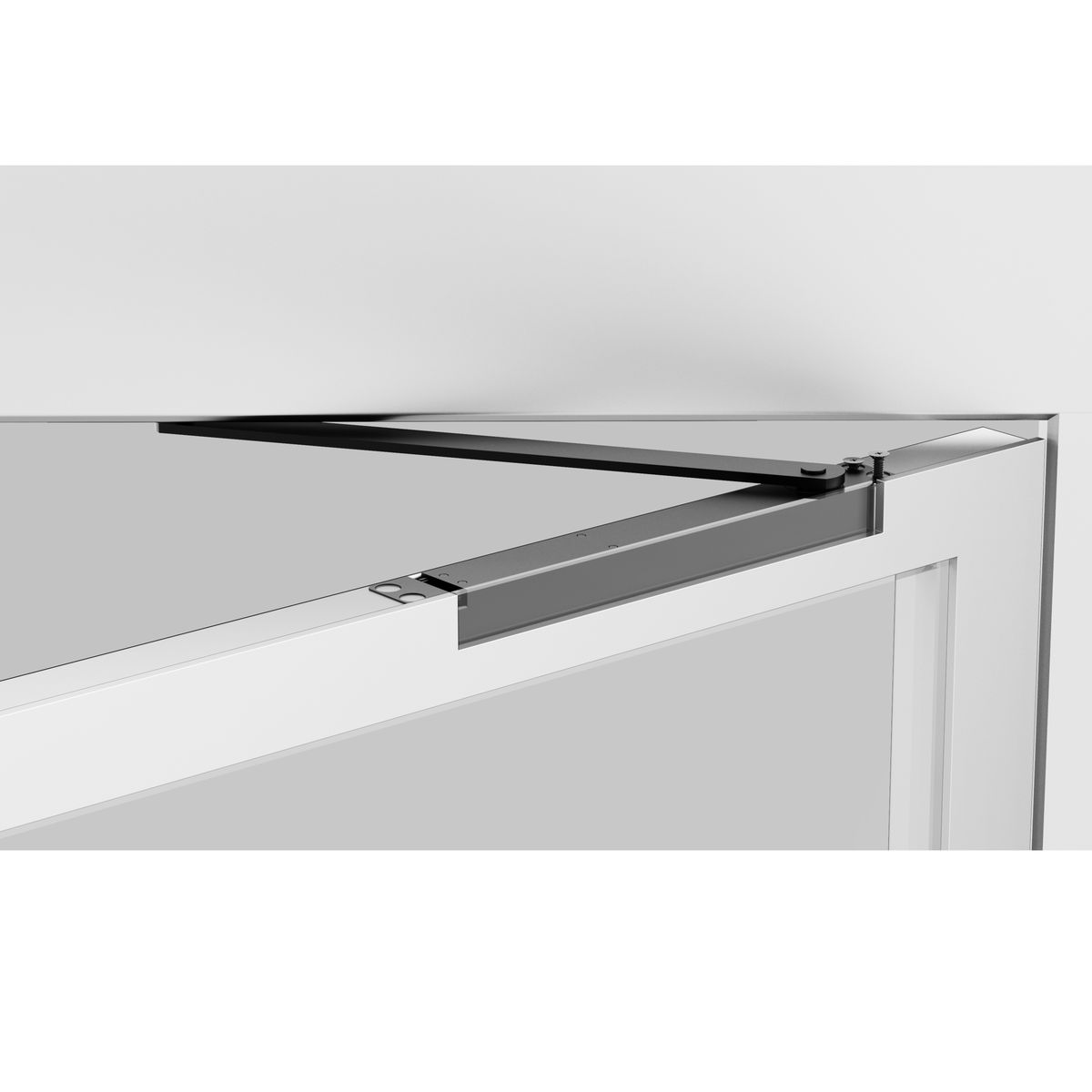

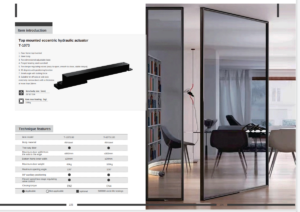

Top mounted eccentric hydraulic actuator

It is middle duty hydrualic pivot door closer. This hydraulic pivot closer is suitabel for 60KGS/100KGS  wooden door/aluminum door/metal door etc.It is build-in/hiddn in design.This hydraulic pivot closer has bidirectional regulation and dual hydraulic valves.It has 2 stage close speed with backcheck function.It is central mounded in the top.

Model: T-1073

1 Door frame top inverted

2 Steel body

3 Two-dimensional adjustable base

4  Forged bearing steel camshaft

5 Two torque regulating valves (easy to open, smooth to close, stable torque)

6 90 degrees with positioning function

7  Small angle with locking force

8  Suitable for off-axis or side-axis extremely narrow doors with a thickness of more than 38mm

• Item body size: 26*32*259(mm)
• Max hinge loading 100      (kgs)
