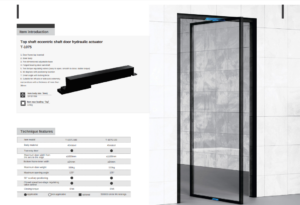

Top shaft eccentric shaft door hydraulic actuator

It is heavy duty hydrualic pivot door closer. This hydraulic pivot closer is suitabel for 100KGS/120KGS  wooden door/aluminum door/metal door etc.It is build-in/hiddn in design.This hydraulic pivot closer has bidirectional regulation and dual hydraulic valves.It has 2 stage close speed with backcheck function.It is central mounded in the top.

Model; T-1075

1 门框顶部倒装 Door frame top inverted

2钢质主体  Steel body

3 二维可调底座 Two-dimensional adjustable base

4煅打轴承钢凸轮转轴  Forged bearing steel camshaft

5两个力矩调节阀(开门轻、闭门顺、力矩稳) Two torque regulating valves (easy to open, smooth to close, stable torque)

6 90度带定位功能  90 degrees with positioning function

7 小角度有闭锁力 Small angle with locking force

8适用于门厚38mm以上的偏轴或边轴极窄门  Suitable for off-axis or side-axis extremely narrow doors with a thickness of more than 38mm
