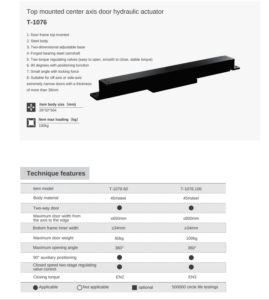

T-1076

Top mounted center axis door hydraulic actuator

It is heavy duty hydrualic pivot door closer. This hydraulic pivot closer is suitabel for 150KGS/200KGS wooden door/aluminum door/metal door etc.It is build-in/hiddn in design.This hydraulic pivot closer has bidirectional regulation and dual hydraulic valves.It has 2 stage close speed with backcheck function.

Model: T-1076

1 Door frame top inverted

2Steel body

3 Two-dimensional adjustable base

4 Forged bearing steel camshaft

5 Two torque regulating valves (easy to open, smooth to close, stable torque)

690 degrees with positioning function

7 Small angle with locking force

8 Suitable for off-axis or side-axis extremely narrow doors with a thickness of more than 38mm
